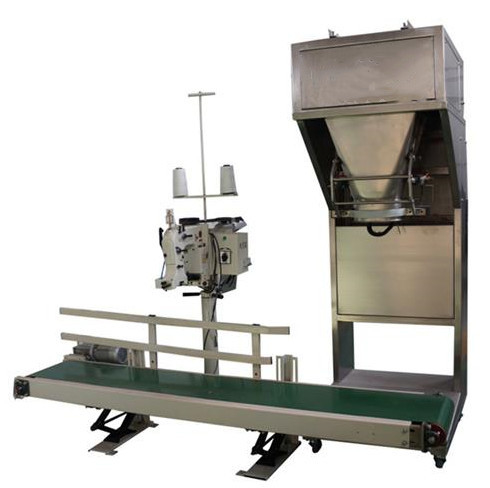

0.6mpa 50kg Pellet Packing Filling Machine Without Bucket RS232

Scope of application for grain, rice, seeds, fertilizer, chemical, food and other industries in granular materials automatic measurement packaging.

Product Features:

High precision sensor, high intelligent weighing controller, high measurement accuracy, stable performance. ◆ Automatic correction of blanking difference, automatic tracking of zero, overshoot detection and suppression, excessive and insufficient alarm. ◆ The forced execution function under simulated state truly realizes the fault self-diagnosis, which is convenient for maintenance and overhaul.

◆ In case of failure in the automatic control process, as an emergency measure, the packaging process can be completed manually without interrupting the packaging operation.

◆ Automatic statistics of the number and quantity of bags loaded. With RS232 serial port and printer interface, it can communicate with computer and realize data printing.

Pneumatic actuators are adopted, the inlet and outlet pressure of the cylinder can be adjusted, which makes the work more reliable and pollution-free. The parts contacting with the material are made of stainless steel, which meet the requirements of food hygiene, resist corrosion and prolong the service life of the equipment.

◆ High safety, quality design, pneumatic components, electrical appliances, instruments have safety protection, to ensure equipment and personal safety.

◆ Human design. When the packing quantity changes, the height of the conveyor is adjusted manually or automatically, and the sewing machine automatically cuts the line; The conveyor is equipped with a back switch. For the package with suture defects, it can be returned for secondary suture.

Technical parameters:

Type measurement range packaging speed packaging precision power air pressure

Xy-50qwa 5-50kg 4-6 packets/min 0.2% f.S2kW 0.4-0.6mpa

Optional functions:

◆ Photoelectric induction automatic thread cutting sewing bag.

◆ Automatic bag guide function.

Automatic lifting adjustment of conveyor

The conveyor can be used in chemical industry such as chemical fertilizer
