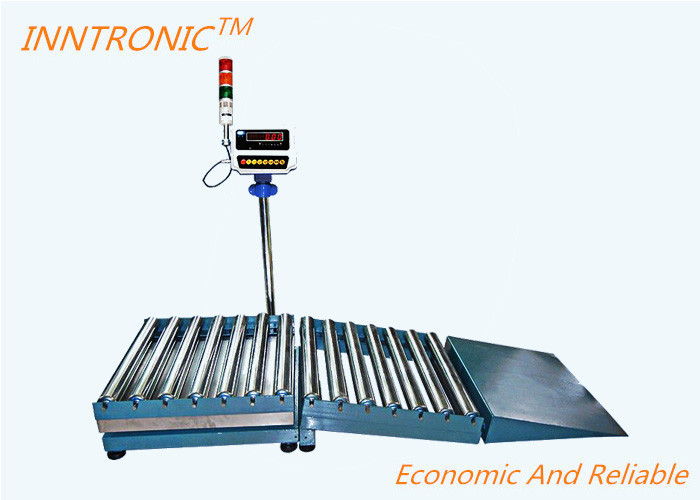

IP66 RS485 Industrial Roller Conveyor Scale Systems 500kg With LED Display

I'm Online Chat Now
China INNOVATION AUTOMATIC CO.,LTD certification

IP66 RS485 Industrial Roller Conveyor Scale Systems 500kg With LED Display

IP66 RS485 Industrial Roller Conveyor Scale Systems 500kg With LED Display
IP66 RS485 Industrial Roller Conveyor Scale Systems 500kg With LED Display IP66 RS485 Industrial Roller Conveyor Scale Systems 500kg With LED Display

Large Image :  IP66 RS485 Industrial Roller Conveyor Scale Systems 500kg With LED Display Get Best Price

Product Details:
Place of Origin: China
Brand Name: inntronic
Model Number: RC6060-IN420
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100pcs per month
Detailed Product Description
Model: RC6060-IN420 Enclosure Material: Stainless Steel SS304
Working Humidity: ≤90% RH Working Temperature: -10°C To 40°C/14°F To 104°F
Dimensions (mm): 226mm X 71mm X 161mm

RC6060-IN420 roller conveyor alarm scale of high precision with RS485 output

IP66 Industrial Roller Conveyor Built - In Clock With LED 6 - Digit Display

Capacity:300kg ,500kg
Accuracy: OIML C3 100g, 150G. OR HIGHER PRECISION: 10g, 15G.
Function:
1. With alarm
2. RS485 or RS232 Output /Modbus rtu available

  • Free PC software with programmable for all function


Special Function

  • Fast speed
  • High accuracy


Weight Controller Function:
• Auto zero scale • Auto zero tracking • Normal weighing
• Peak • Counting • Zero scale • Gross/Net
• Tare • RS-232C • RS-485 • Print interface (PS805 Printer)



Has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles
per second and drives up to eight 350Ω or sixteen 700Ω load cells.

With a SS304 stainless steel wash down enclosure is ideal for the food industry, agricultural industry, and industrial applications
and COMPLY WITH STANDARD OF NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000.

High precision load cell for roller conveyor scale


High precision weighing display for roller conveyor scale


Metal parts for the roller conveyor scale


Rollers for roller conveyor scale

  • COMPLY WITH STANDARD OF NTEP III/IIIL, 10 000
  • COMPLY WITH STANDARD OF Measurement Canada III, 10 000; III HD 20 000
  • Material: Stainless steel SS304
  • IP Rating: IP66
  • LED 6-digit display
  • Power Supply: AC adaptor, 100-240VAC, 50-60Hz
  • Parameter and calibration settings are performed on the front panel
  • LABRADOR computer software for parameter and calibration settings
  • Units of Measurement: kg, lb
  • Improper operation and fault indication
  • Two way relay signal output
  • Equipped with RS-232 and RS-485 connecting ports
  • Print functions with programmable print format
  • Built-in clock

Weight Controller Data


Enclosure MaterialStainless steel SS304
Units of Measurementkg, lb
Working Humidity≤90% RH
Working Temperature-10°C to 40°C/14°F to 104°F
Dimensions (mm)226mm x 71mm x 161mm
Dimensions (in)8.9in x 3.7in x 6.34in
Display TypeLED
Display Digits6 digits
Digit Height25.4mm/1in
Display Dimensions143mm x 41mm/5.6in x 1.6in
Power SupplyAC adaptor, 100-240VAC, 50-60Hz
IP RatingIP66



Division1, 2, 5, 10
Tare Range100% of Cn
Maximum Number of Load Cells8×350Ω or 16×700Ω
Maximum Power Consumption6VA
Excitation Voltage5VDC ± 5%
Fusible Link Fuse (slow blow)1A
Communications InterfaceRS-232C, RS-485
Print InterfaceSerial interface



IP66 RS485 Industrial Roller Conveyor Scale Systems 500kg With LED Display 0IP66 RS485 Industrial Roller Conveyor Scale Systems 500kg With LED Display 1IP66 RS485 Industrial Roller Conveyor Scale Systems 500kg With LED Display 2
