3T 5T Precision Roller Conveyor Scale 1200 X 1200CM Paltform

3T 5T Precision Roller Conveyor Scale 1200 X 1200CM Paltform
3T 5T Precision Roller Conveyor Scale 1200 X 1200CM Paltform 3T 5T Precision Roller Conveyor Scale 1200 X 1200CM Paltform 3T 5T Precision Roller Conveyor Scale 1200 X 1200CM Paltform

Large Image :  3T 5T Precision Roller Conveyor Scale 1200 X 1200CM Paltform Get Best Price

Product Details:
Place of Origin: China
Brand Name: Innovation
Model Number: 2.4G Wireless roller conveyor scale
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Pattern: 2.4G Wireless Roller Conveyor Scale Capacity: 1T 2T 3T 5T
Precision: OIML C3 C5 Platform: 1200CM*1200CM
Indicator: Keli XK3118T1-F(WX) 2.4G Wireless Indicator Input Member Sensitivity: 21.5uv/d

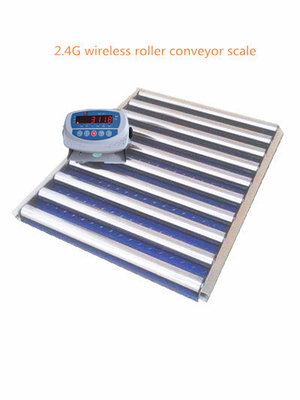

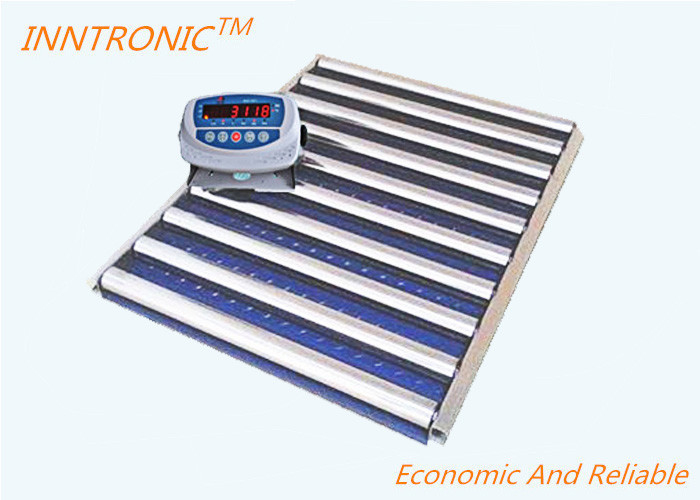

2.4G Wireless roller conveyor scale



High Precision Wireless Roller Conveyor Scale Built - In Switch Power Supply Optional



High precision

Capacity: 1T 2T 3T 5T

Precision: OIML C3 C5

Platform: 1200CM*1200CM

Indicator: Keli XK3118T1-F(WX) 2.4G Wireless indicator



T-F (WX wireless digital display instrument can receive and display the detected signal in the field of wireless digital form, which solves the problem of difficult location and inconvenient movement. Using high strength anti-interference single chip microprocessor, 24G wireless transmission and high precision delta sigma AD conversion technology, the wireless weighing system of static detection system, including T1-F (WX wireless electronic weighing instrument and T-WX1 wireless transmitter), needs to buy the above two products to use. T1-F (WX) series instrument power supply mode has transformer, built-in switch power supply is optional.

Features and this function:
the wireless communication distance of 50 meters with energy saving mode and automatic shutdown function; at the same time supporting the wired wireless connection junction box T-WX1-A to charge one power for a normal operation about 200 small;


the XK3118T1-FWX technical wood parameter :

  • input member sensitivity: 21.5uv/d
  • indexing value: 1, 2, 5, 10, 20, 50
  • sensor bridge voltage :Dc5V can be connected to 1~6 3509 electric positive strain sensor sensor;
  • signal input range :16mv-18mv
  • sensor connection mode :adopts 6 wire type (long line automatic compensation, complement distance less than 30 meters
  • fraction value :1/25/10/20/50 optional modulation mode GFSK:
  • working frequency: 2 4GHZ
  • working channel :16
  • transmission distance: 50 meters (open ground) meter
  • main power source: T1-F1 (W: built-in transformer, marking AC220V, such as A C110v, please explain the order.

3T 5T Precision Roller Conveyor Scale 1200 X 1200CM Paltform 03T 5T Precision Roller Conveyor Scale 1200 X 1200CM Paltform 1
