25w 25kg 0.6mpa Automatic Weighing And Packing Machine

I'm Online Chat Now
China INNOVATION AUTOMATIC CO.,LTD certification

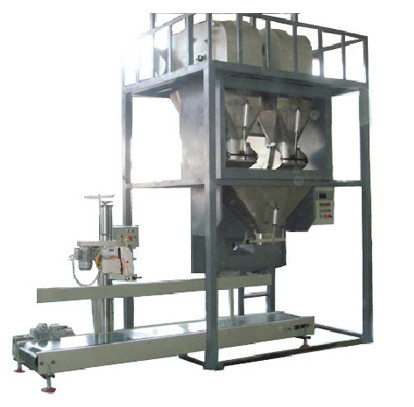

25w 25kg 0.6mpa Automatic Weighing And Packing Machine

25w 25kg 0.6mpa Automatic Weighing And Packing Machine
25w 25kg 0.6mpa Automatic Weighing And Packing Machine

Large Image :  25w 25kg 0.6mpa Automatic Weighing And Packing Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Innovation
Model Number: XYC-P
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100pcs per month
Detailed Product Description

Applicable Scope:



High speed measurement and packaging of materials with certain humidity or leavening, adhesives, loose strips and fibers, flaky, spherical and multi-state irregular under 10cm in fertilizer, agrochemical, feed, chemical raw materials, sugar and other industries. (e.g., organic fertilizer, compound fertilizer, bagasse, sawdust, ore, manure, flake sulfur).



Working principle:



This series of units is mainly designed for poor material flow alignment and alternate packaging of powder and granule materials using the same packaging scale. The belt type grading feeding method is adopted to control the speed of the belt through the sensor of the material in the packing weighing bin or the packing bag. When the packing material is filled into the packing bag according to the set value, the feeding belt stops feeding. After the material is filled into the packaging bag according to the target value, the bag holder automatically opens, and the bag is sent away through the conveyor belt and sealed by manual assistance.



Technical indicators:

Model Capacity Packing speed Packing accuracy Power Air pressure
XYC-P25W 5-25kg 4-6bag/min 0.2%FS 3kw 0.4-0.6MPA
XYC-P25B 5-25kg 6-10bag/min
XYC-P50W 20-50kg 3-5bag/min



Note: Can be customized according to customer's material and production requirements



Main Features:



◆ It is necessary to have a detailed understanding of the packed materials, output and site conditions before ordering the series packaging units



◆ Automatic completion of material packaging control, set weight display, packaging sequence, process linkage, fault alarm in one

◆ Automatic storage, recovery (copy) debugging parameters function

◆ Automatically store the control parameters of 10 kinds of package weight and the cumulative output, the cumulative number of packages, the total output and the total number of packages of each package weight on duty

Adopt belt conveyor big and small double feeding mode to improve working accuracy and speed

◆ High-brightness fluorescent double-row display, real-time display of package weight, cumulative output, package number

◆ Adjustable automatic peeling cycle function, beat function, keyboard encryption function, data encryption function, clock display function

RS232 and RS485 interface are configured to connect to computer and micro printer. The instrument and computer can be connected to print statistical report of production data



◆ The series units can be equipped with supporting equipment such as feeding machine, silo, conveyor, sewing machine (sealing machine), air compressor, etc



25w 25kg 0.6mpa Automatic Weighing And Packing Machine 0
