300kg 500kg Roller Conveyor Scale RS485 Stainless Steel Gravity Roller Conveyor

I'm Online Chat Now

300kg 500kg Roller Conveyor Scale RS485 Stainless Steel Gravity Roller Conveyor

China 300kg 500kg Roller Conveyor Scale RS485  Stainless Steel Gravity Roller Conveyor supplier
300kg 500kg Roller Conveyor Scale RS485  Stainless Steel Gravity Roller Conveyor supplier 300kg 500kg Roller Conveyor Scale RS485  Stainless Steel Gravity Roller Conveyor supplier

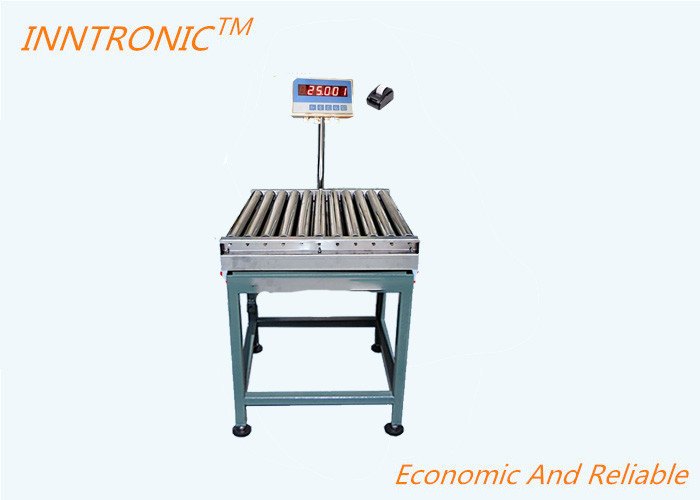

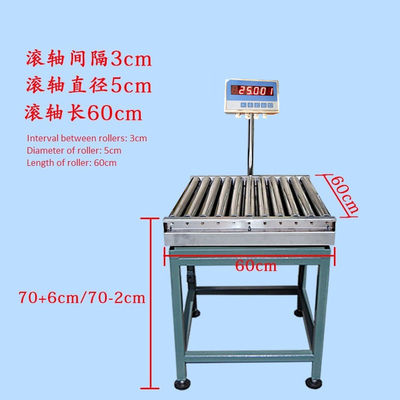

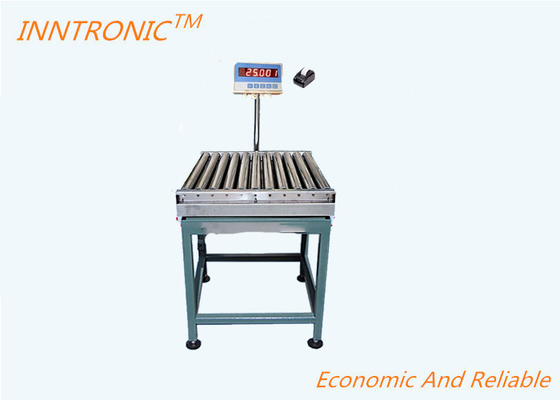

Large Image :  300kg 500kg Roller Conveyor Scale RS485 Stainless Steel Gravity Roller Conveyor

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: RC6060-IN420

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Model: RC6060-IN420 Enclosure Material: Stainless Steel SS304
Units Of Measurement: Kg, Lb Working Humidity: ≤90% RH
Working Temperature: -10°C To 40°C/14°F To 104°F Dimensions (mm): 226mm X 71mm X 161mm

RC6060-IN420 roller conveyor scale of high precision counting scale with RS485 output



Capacity:300kg ,500kg

Accuracy: OIML C3 100g, 150G. OR HIGHER PRECISION: 10g, 15G.





  • RS485/RS232 signal output with Modbus rtu available
  • 2 RELAYS(Optional)
  • Free PC software with programable for all function

Special Function

  • Fast speed
  • High accuracy



Weight Controller Function:

• Auto zero scale • Auto zero tracking • Normal weighing

• Peak • Counting • Zero scale • Gross/Net
• Tare • RS-232C • RS-485 • Print interface (PS805 Printer)





Has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles

per second and drives up to eight 350Ω or sixteen 700Ω load cells.



With a SS304 stainless steel wash down enclosure is ideal for the food industry, agricultural industry, and industrial applications

and COMPLY WITH STANDARD OF NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000.

  • COMPLY WITH STANDARD OF NTEP III/IIIL, 10 000
  • COMPLY WITH STANDARD OF Measurement Canada III, 10 000; III HD 20 000
  • Material: Stainless steel SS304
  • IP Rating: IP66
  • LED 6-digit display
  • Power Supply: AC adaptor, 100-240VAC, 50-60Hz
  • Parameter and calibration settings are performed on the front panel
  • LABRADOR computer software for parameter and calibration settings
  • Units of Measurement: kg, lb
  • Improper operation and fault indication
  • Two way relay signal output
  • Equipped with RS-232 and RS-485 connecting ports
  • Print functions with programmable print format
  • Built-in clock

Weight Controller Data



Enclosure Material Stainless steel SS304
Units of Measurement kg, lb
Working Humidity ≤90% RH
Working Temperature -10°C to 40°C/14°F to 104°F
Dimensions (mm) 226mm x 71mm x 161mm
Dimensions (in) 8.9in x 3.7in x 6.34in
Display Type LCD
Display Digits 6 digits
Digit Height 25.4mm/1in
Display Dimensions 143mm x 41mm/5.6in x 1.6in
Power Supply AC adaptor, 100-240VAC, 50-60Hz
IP Rating IP66



Division 1, 2, 5, 10
Tare Range 100% of Cn
Maximum Number of Load Cells 8×350Ω or 16×700Ω
Maximum Power Consumption 6VA
Excitation Voltage 5VDC ± 5%
Fusible Link Fuse (slow blow) 1A
Communications Interface RS-232C, RS-485
Print Interface Serial interface













300kg 500kg Roller Conveyor Scale RS485  Stainless Steel Gravity Roller Conveyor
