50kg 1.1Kw Roller Conveyor Scale Particles 7bag/Min Weighing And Packing Machine

I'm Online Chat Now

50kg 1.1Kw Roller Conveyor Scale Particles 7bag/Min Weighing And Packing Machine

China 50kg 1.1Kw Roller Conveyor Scale Particles 7bag/Min Weighing And Packing Machine supplier

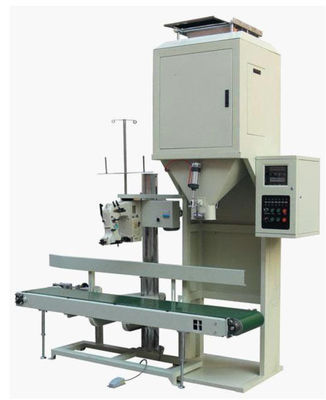

Large Image :  50kg 1.1Kw Roller Conveyor Scale Particles 7bag/Min Weighing And Packing Machine

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: XY-Q50GS

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Color: White Packing Accuracy: 0.2%F.S
Power: 1.1Kw Air Pressure: 0.4-0.6Mpa
Measuring Range: 20-50kg

1.1Kw Particles Weighing And Packing Machine



Applicable Scope:



Pharmaceutical, chemical, fertilizer, seeds, tea, food, monosodium glutamate, feed, sugar, additives and other industries, mainly for particles, loose and other materials with good mobility for automatic measurement packaging.





The working principle of



Electronic quantitative packaging machine is working, the batching controller under the control of automatic reset after the open feeding mechanism for feeding, material continuously into the weighing hopper, the sensor will be converted into corresponding electrical signals, the weight to the batching controller, batching controller on the front panel window shows the material weight value, and according to set the parameters of the output control signal, the various components in turn make feeding mechanism in order to fast, slow continuous two velocity to the weighing hopper feed, complete quantitative feeding. Clip on the packaging bag, metering hopper door open, material depends on its own weight, under the material by the discharging drum filling. At the end of filling, the discharging door is closed, the clamping mechanism opens, and the package is automatically unloaded. At the end of one working cycle, the controller automatically enters the next working cycle. The clamping switch beside the bag-holder can control the clamping action of the bag-holder mechanism, which is used for manual bag-bagging operation. Only when the bag-holder mechanism is in the clamping state, the controller will send the filling control signal.



Technical parameters

Model Measuring range Packing speed Packaging accuracy power Air pressure
XY-Q50GSA 20-50kg 4-7bag/min 0.2%F.S 1.1Kw 0.4-0.6Mpa
XY-Q50GSB 20-50kg 13-17bag/min
