0.5kg 5kg Roller Conveyor Scale Quantitative Fertilizer Automatic Granule Packing Machine

I'm Online Chat Now

0.5kg 5kg Roller Conveyor Scale Quantitative Fertilizer Automatic Granule Packing Machine

China 0.5kg 5kg Roller Conveyor Scale  Quantitative Fertilizer Automatic Granule Packing Machine supplier

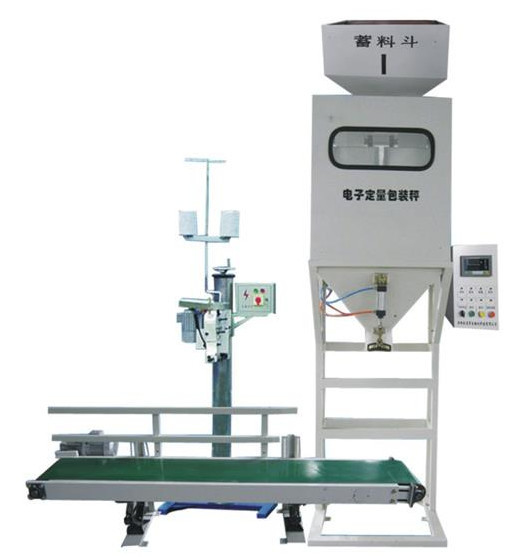

Large Image :  0.5kg 5kg Roller Conveyor Scale Quantitative Fertilizer Automatic Granule Packing Machine

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: XYC

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description

Quantitative Fertilizer Automatic Granule Packing Machine







Applicable Scope:



Pharmaceutical, chemical, fertilizer, seed, tea, food, monosodium glutamate, feed, sugar, additives and other industries, mainly for particles, loose and good fluidity of irregular materials for automatic measurement packaging.



Working principle:



This series of quantitative packing weigher is specially designed for the quantitative packing of all kinds of particulate matter and fine particulate material with good fluidity and small dust. It adopts pneumatic curved door or vibration mode for graded feeding. The material in the packing scale bin is controlled by the pneumatic curved door or vibrating feeder through the sensor, which is classified into weighing hopper or packing bag. When the material in the weighing hopper or packing bag is filled to the set weight, the feeding mechanism stops feeding. After the material is filled into the packaging bag according to the target value, the bag holder automatically opens, the bag is sent away through the conveyor belt, and the bag is manually assisted with sewing (sealing).



Technical indicators:



Model Capacity Packing speed Packing accuracy power Air pressure
XYC-Z5B 0.5-5kg 10-15bag/min 0.2%FS 3kw 0.4-0.6MPA
XYC-Q25B 5-25kg 8-14/bag/min
XYC-Q50A 20-50kg 4-7bag/min
XYC-Q50B 20-50kg 8-12bag/min



Note: Can be customized according to customer's material and production requirements



Main Features:



◆ Before ordering this series of packaging units, it is necessary to have a detailed understanding of the packed materials, output and site conditions;



◆ This series of products take advantage of the material's own weight and good fluidity, and use measuring bucket or hanging weighing;



◆ Accurate and stable measurement, can be used in plastic bags, kraft paper bags, woven composite bags and other packaging;



◆ Use high stability, high precision weighing sensor, weighing module; The interface is simple to operate and intuitive to display



High quality electrical components at home and abroad are selected to ensure reliable and durable equipment



RS232 and RS485 interface are equipped for convenient expansion



The scale has strong structure, small floor area and easy to clean and maintain



◆ The series units can be equipped with supporting equipment such as feeding machine, silo, conveyor, sewing machine (sealing machine), air compressor, etc



0.5kg 5kg Roller Conveyor Scale  Quantitative Fertilizer Automatic Granule Packing Machine
