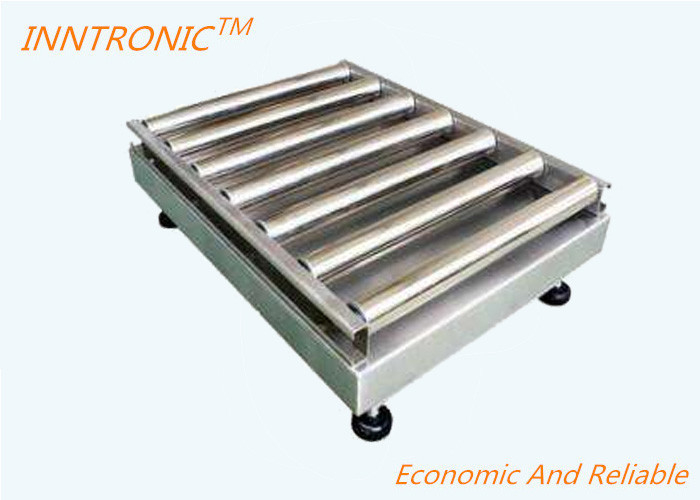

RS485 Slope 500KG Counting Roller Conveyor Scale Weighing System Odm

I'm Online Chat Now
China INNOVATION AUTOMATIC CO.,LTD certification

RS485 Slope 500KG Counting Roller Conveyor Scale Weighing System Odm

RS485 Slope 500KG Counting Roller Conveyor Scale Weighing System Odm
RS485 Slope 500KG Counting Roller Conveyor Scale Weighing System Odm RS485 Slope 500KG Counting Roller Conveyor Scale Weighing System Odm

Large Image :  RS485 Slope 500KG Counting Roller Conveyor Scale Weighing System Odm Get Best Price

Product Details:
Place of Origin: China
Brand Name: inntronic
Model Number: RSC420-XP
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100pcs per month
Detailed Product Description
Pattern: RSC420-XP Enclosure Material: Stainless Steel SS304
Units Of Measurement: Kg, Lb Working Humidity: ≤90% RH
Working Temperature: -10°C To 40°C/14°F To 104°F Dimensions (mm): 226mm X 71mm X 161mm

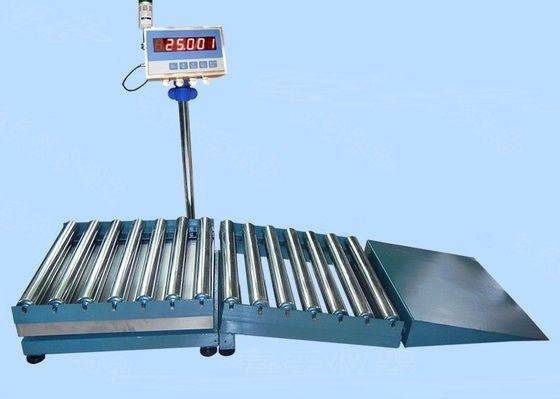

RSC420-XP slope roller conveyor scale With alarm of high precision counting scale with RS485 output

Capacity:300kg ,500kg



RS485 Output Slope Roller Conveyor Scale With Alarm Of High Precision Counting Scale





Accuracy: OIML C3 100g, 150G. OR HIGHER PRECISION: 10g, 15G.

Platform size: 60*60cm

Good quality roller





Special Function of RSC420-XP slope roller conveyor scale

  • Fast speed
  • High accuracy
  • With alarm



Weight Controller Function:

• Auto zero scale • Auto zero tracking • Normal weighing

• Peak • Counting • Zero scale • Gross/Net

• Tare • RS-232C • RS-485 • Print interface (PS805 Printer)





Has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles

per second and drives up to eight 350Ω or sixteen 700Ω load cells.



With a SS304 stainless steel wash down enclosure is ideal for the food industry, agricultural industry, and industrial applications

and COMPLY WITH STANDARD OF NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000.

COMPLY WITH STANDARD OF NTEP III/IIIL, 10 000

COMPLY WITH STANDARD OF Measurement Canada III, 10 000; III HD 20 000

  • Material: Stainless steel SS304
  • IP Rating: IP66
  • LED 6-digit display
  • Power Supply: AC adaptor, 100-240VAC, 50-60Hz
  • Parameter and calibration settings are performed on the front panel
  • LABRADOR computer software for parameter and calibration settings
  • Units of Measurement: kg, lb
  • Improper operation and fault indication
  • Two way relay signal output
  • Equipped with RS-232 and RS-485 connecting ports
  • Print functions with programmable print format
  • Built-in clock



High precision and fast speed Weight Controller Data




Enclosure Material Stainless steel SS304
Units of Measurement kg, lb
Working Humidity ≤90% RH
Working Temperature -10°C to 40°C/14°F to 104°F
Dimensions (mm) 226mm x 71mm x 161mm
Dimensions (in) 8.9in x 3.7in x 6.34in
Display Type LCD
Display Digits 6 digits
Digit Height 25.4mm/1in
Display Dimensions 143mm x 41mm/5.6in x 1.6in
Power Supply AC adaptor, 100-240VAC, 50-60Hz
IP Rating IP66






Division 1, 2, 5, 10
Tare Range 100% of Cn
Maximum Number of Load Cells 8×350Ω or 16×700Ω
Maximum Power Consumption 6VA
Excitation Voltage 5VDC ± 5%
Fusible Link Fuse (slow blow) 1A
Communications Interface RS-232C, RS-485
Print Interface Serial interface



RS485 Slope 500KG Counting Roller Conveyor Scale Weighing System Odm 0RS485 Slope 500KG Counting Roller Conveyor Scale Weighing System Odm 1
