Granule Packing Soybean 300 Bag/Hour Meal Industrial Conveyor Scale Rollers

I'm Online Chat Now

Granule Packing Soybean 300 Bag/Hour Meal Industrial Conveyor Scale Rollers

China Granule Packing Soybean 300 Bag/Hour Meal Industrial Conveyor Scale Rollers supplier

Large Image :  Granule Packing Soybean 300 Bag/Hour Meal Industrial Conveyor Scale Rollers

Product Details:

Place of Origin: China
Brand Name: Innovation
Model Number: YTDK—M—1

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Model No.: YTDK—M—1 Power Supply: AC380V/50Hz/±10%
Power Consumption (about): 1.1kW/hour

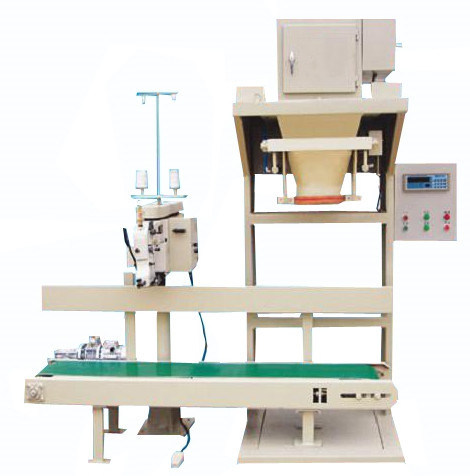

Granule Packing Soybean 300 Bag/Hour Meal Industrial Conveyor Scale Rollers



It is widely used for automatic quantitative packing of all kinds of granular materials

For example: soybean meal, feed, seed, building materials, compound fertilizer, chemical raw materials and other kinds of granular materials measurement packaging



One, the special points

· Parts in contact with materials are made of stainless steel, with strong corrosion resistance, high health standards and long service life of the equipment.

· Unique feeder design, dual cylinder drive, adjustable feeding door to adapt to different material changes, ensuring high speed and high precision requirements.

· Easy to clean and maintain, low failure rate of transmission parts.

· Direct bag weighing, suitable for light specific weight, heavy weight rapid measurement and packaging.

·20 kinds of different packaging weights are pre-stored, which can meet the requirements of a variety of measurement packaging and make it easy to call out the formula.

· Select high-quality imported and domestically made electrical and pneumatic components to ensure stable and reliable operation of the equipment.

· Dust cover and dust removal device can be added according to the characteristics of materials.

Ii. Main technical parameters



Model Packing weight(Kg) Packing speed bag/hour precision Installation dimensions (mm) Length × width × height (including conveyor) Machine weight(Kg)
YTD60K—M—1 20 60 300350 0.2 3000×800×2000 500
YTD25KM1 5 25 300350 2800×800×2000 500

·The packing precision and speed depend on the material characteristic  ·Power SupplyAC380V/50Hz/±10%
·Power consumption (about) 1.1kW/hour      · Air source (compressed air) 0.5mpa



Granule Packing Soybean 300 Bag/Hour Meal Industrial Conveyor Scale Rollers
