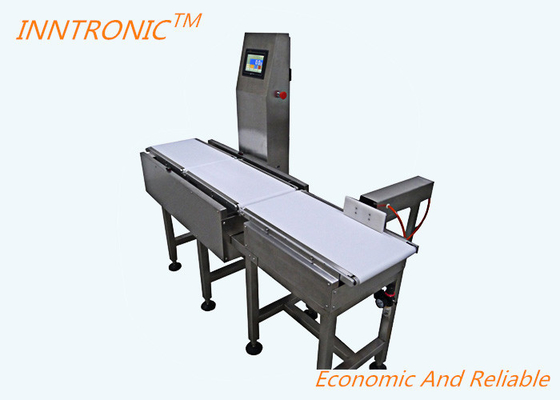

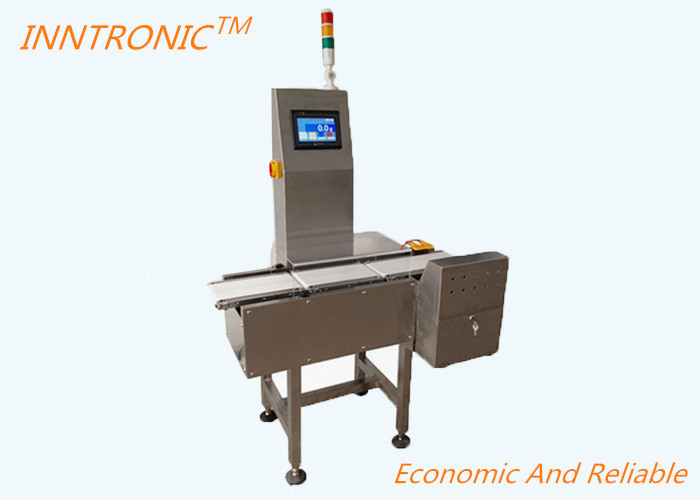

100 P/Min 1500g 0.5g Check Weigher Machine Digital Weight Checking

I'm Online Chat Now
China INNOVATION AUTOMATIC CO.,LTD certification

100 P/Min 1500g 0.5g Check Weigher Machine Digital Weight Checking

100 P/Min 1500g 0.5g Check Weigher Machine Digital Weight Checking
100 P/Min 1500g 0.5g Check Weigher Machine Digital Weight Checking 100 P/Min 1500g 0.5g Check Weigher Machine Digital Weight Checking

Large Image :  100 P/Min 1500g 0.5g Check Weigher Machine Digital Weight Checking Get Best Price

Product Details:
Place of Origin: China
Brand Name: inntronic
Model Number: INCW-G220
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100pcs per month
Detailed Product Description
Pattern: INCW-G220 Maximum Weighing: 1500g
Weighing Range: 5g-1500g Maximum Precision: 0.5g
Display Precision: 0.1g Maximum Sorting Speed: 100p/min

INCW-G220 overweight elimination separator on line Check weigher 1500g 0.1g



100p / Min Automatic Check Weighing Machines For Attachment Missing Detection



Basic priciple:



The speed unit of the production line of the front section of the basic principle enters the weighing unit through the direct and speed increase to make the product enter the weighing unit neatly and equidistant, and when the photoelectric switch is located at the front of the weighing unit, the equipment begins to automatically weigh the product. At the same time, the machine is compared with the original standard weight value and the upper and lower limit values, and the qualified products and overweight and heavy products are automatically sorted out.



Application scope:

1. pipeline weighing detection: 1) overweight / under weight testing;

2) missing parts inspection;

3) attachment missing detection.

2. assembly line weighing and sorting: 1) multistage weight sorting; 2) unqualified products sorting; 3) substandard products.

3 . weighing machine combination application: provide weighing machine and metal detection, automatic spray code, automatic scanning automatic sealing equipment integration equipment.

4. customization: according to the actual needs of enterprise users and the characteristics of the production environment, we provide professional customized solutions and equipment.



Automatic weighing, sorting and rejecting machine for casting weighing scales, high accuracy detection of rejected products

Four, product Q & A:
How do products choose? Answer: the first step is to determine the series according to the size, weight range and use of the product you need. Such as weight 100g, size 80*90*30mm, overweight or heavy rejection or multiple pieces of automatic elimination. Choose model INCW-150, and the width of the belt is within 150mm 500g. The second step is to determine the type according to your accuracy and speed. If you need precision 0.5g, speed 100 pieces / minute, select standard machine. If you ask for speed of 280 pieces per minute, or the accuracy is less than 0.1g. High speed series or high precision series are needed. The third step is to determine the height, width (if any) of your existing pipeline and the space needed by our company. The fourth step is to determine the functions you need to select, such as USB storage data, real-time transmission of weight data, alarm and so on. In order to provide more accurate parameters, solutions and quotations, we suggest that you contact the person in charge of our division to help you complete the selection.

2. what is the accuracy of your company? How much can the speed reach? A: there are many factors that determine the accuracy of a product, which is related to the weight, size, speed and environment of the product. In general, the larger the weight, the larger the product size and the faster the speed, the worse the product accuracy is. The detection speed can be reached to 300 pieces per minute.

3. how about your after-sale service? Do we have any after-sale service at the local level? Answer: we insist that no after-sales service is the best after sale service. During the warranty period, if there is quality problem, we will arrange the remote collaborative debugging for the first time. If it fails, we will send someone to the door to debug in person.

4. how long will it take for the delivery of your company's products? Answer: for those who can use standard machines, our company is in stock and will be shipped within three working days after payment is received. For non-standard equipment, due to the need for redesign changes, the delivery time is about 2-3 weeks. The company currently introduces processing centers to shorten the delivery time as much as possible. What is the size of the

5. product? Answer: 150 series standard machine L740mm*W605mm*1450mm220 series standard machine L1150mm*W665mm*1450mm300 series standard machine L1560mm*W735mm*1450mm400 series standard machine L2000mm*W845mm*1450mm450 series standard machine L450mm*W910mm*1450mm

our company supports product size customization use case show



Parameters of INCW-450 Series check weigher

pattern INCW-G220
Maximum weighin 1500g
Weighing range 5g-1500g
Maximum precision 0.5g
Display precision 0.1g
Maximum sorting speed 100p/min



Belt width 220mm
product lengthmm ≤300mm
size widthmm ≤220mm
  heightmm ≥3mm
  The elimination mode air blow type air blow type, push rod type, lever type and downward type.
operation interface color LED touch screen
preset products 200
External interface USB interface (for storing data, optional), RS232 (optional), TCP/IP (optional)
equipped with metal detectors, inkjet printer, labeling machine, printer, etc.
power 220v
External gas source 0.6-1MPA
Pressure interface Φ 8mm
Machine structure material stainless steel (SUS304)
note

1. the attributes and environment of the tested products are different, and the actual detection speed and accuracy are also different.
More than



  2.of the machine specifications are standard, other sizes and special requirements can be customized.
