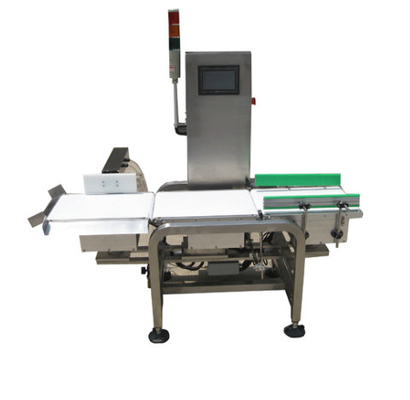

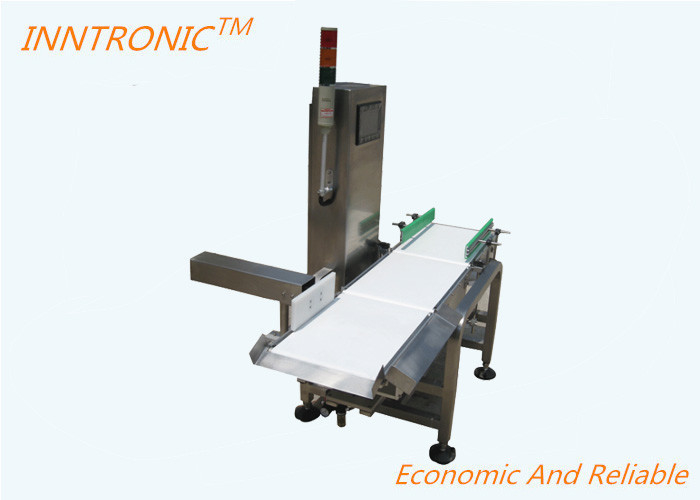

1kg To 20kg Check Weigher Machine 10g High Precision In Line Checkweigher

I'm Online Chat Now

1kg To 20kg Check Weigher Machine 10g High Precision In Line Checkweigher

China 1kg To 20kg Check Weigher Machine 10g High Precision In Line Checkweigher supplier
1kg To 20kg Check Weigher Machine 10g High Precision In Line Checkweigher supplier 1kg To 20kg Check Weigher Machine 10g High Precision In Line Checkweigher supplier

Large Image :  1kg To 20kg Check Weigher Machine 10g High Precision In Line Checkweigher

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: INCW-FS20

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Model: INCW-FS20 Scale Of Weighing: 1kg-20kg
Weighing Precision: + 10g Long Weighing Table Size: 600mm
Width: 300mm Display Resolution: 0.5g
Sorting Speed: 25 Packs / Minutes

Scale of weighing: 1kg-20kg INCW-FS20 Check weigher Weighing precision: + 10g

High Precision Check Weigher Machine For Large Weight And Large Volume Items





Special advantages:


1. The length of the weighing section of this type of product is shorter than that of the standard type; it shortens the invalid weighing time in the middle and makes the rapid selection scale faster and more efficient. This model is suitable for a length less than 200mm.


Product testing.


2. The adjustable splint device is used in the front part of the equipment to prevent the product from rolling in a disorderly way and ensure higher accuracy. The adjustable splint device is suitable for the detection of round, oval and egg shaped products.



Select the technical parameters of the scale:


Scale of weighing: 1kg-20kg
Weighing precision: + 10g
Weighing table size: long: 600mm; width: 300mm;
Display resolution: 0.5g
Sorting speed: 25 packs / minutes
Belt speed: 10-40 meters per minute
The height of the conveyer belt from the ground: 750mm + 50mm (confirmation)
Delivery direction: operating interface from left to right
Motor power: alternating current 220 volts (50/60 Hertz)
Working temperature: from 0 C to 40 C
Humidity: 90% relative humidity (no condensate)
The material of the scale body is made of stainless steel
Whole machine size: long: 1200mm; width: 650mm; height: 1350mm + 50mm



Weighing range   3-200g 5-500g 5-1200g 5-300g
Maximum precision   0.1g 0.2g 0.5g 1.0g
Maximum belt speed   60m/min 60m/min 55m/min 50m/min
maximum speed   150PPS 120PPS 90PPS 70PPS
Detection of product size length <=200mm <=200mm <=350mm <=350mm
width <=98mm <=158mm <=220mm <=320mm
height <=3mm
belt size   325*98 325*158 435*220 470*320
Minimum scale   0.1g 0.1g 0.1g 0.5g
power   60W 60W 150W 180W
power supply   AC220V/110V+-10%50hz/60hz
Weighing method   Strain gauge weight sensor
indicator   HMI 7/10
Operating temperature   _5~40
Waterproof grade   IP54/IP65
Zero point tracking   automatic
Combinatorial machine   Printer, inkjet printer, scanner, metal detector, etc.
Eliminating device   Push rod pull rod down and blow air
Reserved interface   RS232 RS485 RS422



1kg To 20kg Check Weigher Machine 10g High Precision In Line Checkweigher1kg To 20kg Check Weigher Machine 10g High Precision In Line Checkweigher



1kg To 20kg Check Weigher Machine 10g High Precision In Line Checkweigher



1kg To 20kg Check Weigher Machine 10g High Precision In Line Checkweigher
