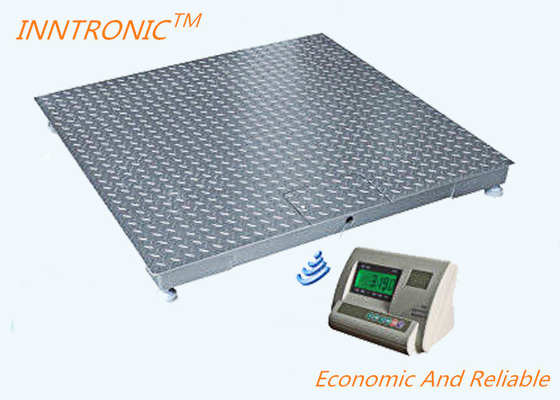

Carbon Steel 1.2x1.2m Heavy Duty Floor Scale Wireless Floor With Weight Indicator

PL15299893-3t wireless floor scale 1 2 x 1 2m gray floor weight scale with weight indicator





Carbon Steel Gray 1.2x1.2m Wireless Floor Scale , Industrial Floor Weighing Scales With Weight Indicator



Power supply:220v/50HZ or 110v/60HZ

Display type:LCD/LED

Ramp is optional

Color is optional—gray, black, blue, green or other colors.



Description:



1. Checker plate platform.

2. with special steel plate to avoid mouse enter the U beams to bite cable.

3. Mild steel and power coated

4. 4 load cells construction

5. Easy to install and transit

6. 5m cable supplied, metal-conduit cable and shielded cable optional

7. With rechargeable acid-lead battery.



Instrument features :



1. High-precision A / D conversion with readability up to 1/100000 ;

2. Calls within the code , replace weight observing and analysis of tolerance ;

3. Special software techniques to enhance the ability of anti-vibration system ;

4. Digital filtering of the speed , range and stable time can be set;

5. weighing counting function ( the weight of a single power protection );

6. Digital tube variety brightness optional ;

7. Standard RS232 communication port,baud rate,communication options can be accessed by PC or big screen ;

8. With the kg / lb conversion ;

9. Optional with 2 outputs / inputs switching signal can be applied to other control systems ( when ordering) .





Key functions:



[ # ] Press this button while open ,it will enter to calibrate mode.

[ Func ] Keep pressing this button for 5 seconds more in weighing mode, it will come into

operator setting mode; less than 5 seconds, it will come into counting mode.

[ * ] Press this button to accumulating the weight in weighing mode.

Press this button for sample taking in counting mode

[ Tare ] Press this button to tare in weighing mode.

[ Zero ] Press this button to zero in weighing mode.

[ ON/OFF ] Press this button to start the indicator when it is off; and press it to shut off upon on.





Applications:



Be suitable for weighing vehicles and goods, you can choose ultra-low single deck floor scale or ultra-low double deck floor scale or Integrated low profile floor scale.



Competitive Advantage:



1. Allowed to be used in special environment for water-proof junction box and marine paint (epoxy zinc rich primer)

2. Made of Steel Q235 material which provides strength and rigid support for the platform

3. Simple or arabesquitic plate

4. Digital load cell makes weighing more accurate





Detailed Product Description





Name:	Industrial Floor Scales	Material:	Carbon Steel
Power Supply:	220v 50HZ Or 110V 60HZ	Rated Load:	3tons
Accuracy::	2kg~5kg	Color:	Gray, Blue, Black, Red



1.2x1.2m 3t Wireless carbon steel gray color floor scale with weight indicator





Specifications:



Model	Size(m)	Capacity(t)
0808	0.8x0.8	1~3
1010	1.0X1.0	1~3
1212	1.2X1.2	1~3
		5
1215	1.2x1.5	1~3
		5
1515	1.5X1.5	1~3
		5
1520	1.5X2	1~3
		5

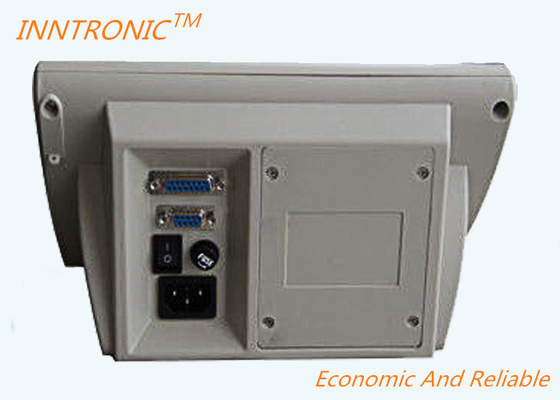

Indicator Features:



Model:	FL12-WL	Scoreboard Interface:	In serial output mode: RS232
Accuracy:	GradeⅢ,n=3000	transmission Distance:	≤30m
Sample Rate:	80Times/Second	Operating Temp.:	0～40℃
Load Cell Sensitivity:	1.5～3mV/V	Operating Humidity:	≤90%RH
Scale Interval:	1/2/5/10/20/50 for Option	Transporting Temp.:	-20～50℃
Display:		6 bits LED, 6 state indicating signals
Communication Interface:		RS 232C;Baud rate 1200/2400/4800/9600 optional
