Column Canister Compression Load Cell for Truck Scale-IN-C16

China Column Canister Compression Load Cell for Truck Scale-IN-C16 supplier
Column Canister Compression Load Cell for Truck Scale-IN-C16 supplier Column Canister Compression Load Cell for Truck Scale-IN-C16 supplier Column Canister Compression Load Cell for Truck Scale-IN-C16 supplier Column Canister Compression Load Cell for Truck Scale-IN-C16 supplier Column Canister Compression Load Cell for Truck Scale-IN-C16 supplier

Large Image :  Column Canister Compression Load Cell for Truck Scale-IN-C16

Product Details:

Place of Origin: China load cell
Brand Name: Innovation
Model Number: IN-C16

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD1-USD100
Packaging Details: CARTON
Delivery Time: 7-15DAYS
Payment Terms: L/C, T/T
Supply Ability: 1000PCS/MONTH
Contact Now
Detailed Product Description
Material: Alloy Steel/Stainless Steel Capacity: 10,15, 20,25, 30, 40, 50t

Column Canister Compression Load Cell for Truck Scale-IN-C16

Column Canister Compression Load Cell for Truck Scale-IN-C16

Column load cell
Stable quality in the long term.
LOAD CELL Suitable for truck scale
Interchangeable with HBM LOAD CELL MODEL C16

Advantages:
-Self-restoring function
-Simple to Install
-Laser welded, IP68
-Optimized for parallel connection by corner pre-adjustment
-Application: Truck scale or other compression weighing devices

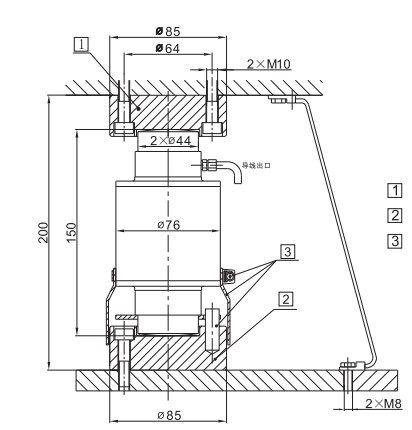

Load Cell Installation Dimensions:

Column Canister Compression Load Cell for Truck Scale-IN-C16

Load Cell Parameters:



Items UNIT TECHNICAL DATA
Rated capacity (Emax) t 10,15,20,25,30,40,,50
Accuracy class   C3
Output(cn)/Zero Balance/ mV/V 2.0 ±0.02 /0±0.02
Minimum LC verification interval (Vmin) % of Emax 0.01
Creep over 30min % of Cn 0.02
Temperature effect on zero % of Cn/10K 0.02
Temperature effect on output % of Cn/10K 0.02
Hysteresis % of Cn 0.017
Linearity deviation % of Cn 0.017
Repeatability % of Cn 0.017
Service temperature range   -30 to +70
Limit load & Break load % of EMax. 120 /150
Nominal excitation V 5~12
Input resistance & Output resistance Ω 700±20 & 703±20
Insulation resistance M >5000
Cable length: diameter :Ø6mm M 14
Cable type   4 conductors, Braid Shielded, Black PVC Jacket
Color code:   +Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht
Construction material:   stainless steel / alloy steel
Protection class to IEC529   Ip68
